the green line continues through Nexus by Arkitema

Nexus is a large, new building where there are offices for five public agencies … Rail Net Denmark, the Danish Transport Authority, the Danish Road Directorate, the Danish Building Authority and the Danish Energy Agency.

From the air view, you can see that there is a complicated, clover-leaf arrangement of four blocks and each with an atrium. From the streets around and from the central 'courtyard' this underlying arrangement is not so obvious.

There are tight, outward-facing open courtyard on both sides of the building …. so on the north side, towards the railway, there is a relatively narrow courtyard with a main entrance from the street level of Carl Niebuhrs Gade and, on the opposite side, towards Kalvebod Brygge, there is a comparable open courtyard that appears to be primarily a light well for what would otherwise be a large and deep block.

Judging by eye, the south block of the four, has two corners set at right angles - so just one side - the inner side - is set at an angle. Two blocks have a single corner each that is at a right angle - the north block with a 90 degree angle towards the small courtyard on its east side and the east block with one external right angle, towards Fisketorvet. The west block has no right angles so there appears to be a game going on here.

It's partly about how someone understands the relationships of the blocks from the outside as they approach the building and in part its about how the view out from the offices is guided by the angle of the external wall.

Some upper levels step back at each floor and change angle slightly so. again, it is about how the blocks are perceived and it hints, unlike a sheer wall, that the building is turning or twisting. The set backs are too small to make much difference to the shadow thrown by the building.

With the garden through the centre of the building, as part of the green line, the visitor is drawn in by the angles narrowing towards a main entrance to the offices at the upper level but also, from the entrance, the angles opening out beyond shows you the way out and on down.

This is a very sophisticated combination of angles, levels and landscape that control and direct how people see the building but also how they move around and into the building.

Inside, the atriums, staircases, wide public areas and views out to courtyards and so on all suggest a flexible work environment and is very much about people move around even during the working day. This is a stark contrast to 'modern' Danish office buildings of the 1950s and 1960s like Søllerød Town Hall by Arne Jacobsen where the over-riding arrangement in the office building is a spine corridor with single-cell work spaces on either side and that is repeated on each floor.

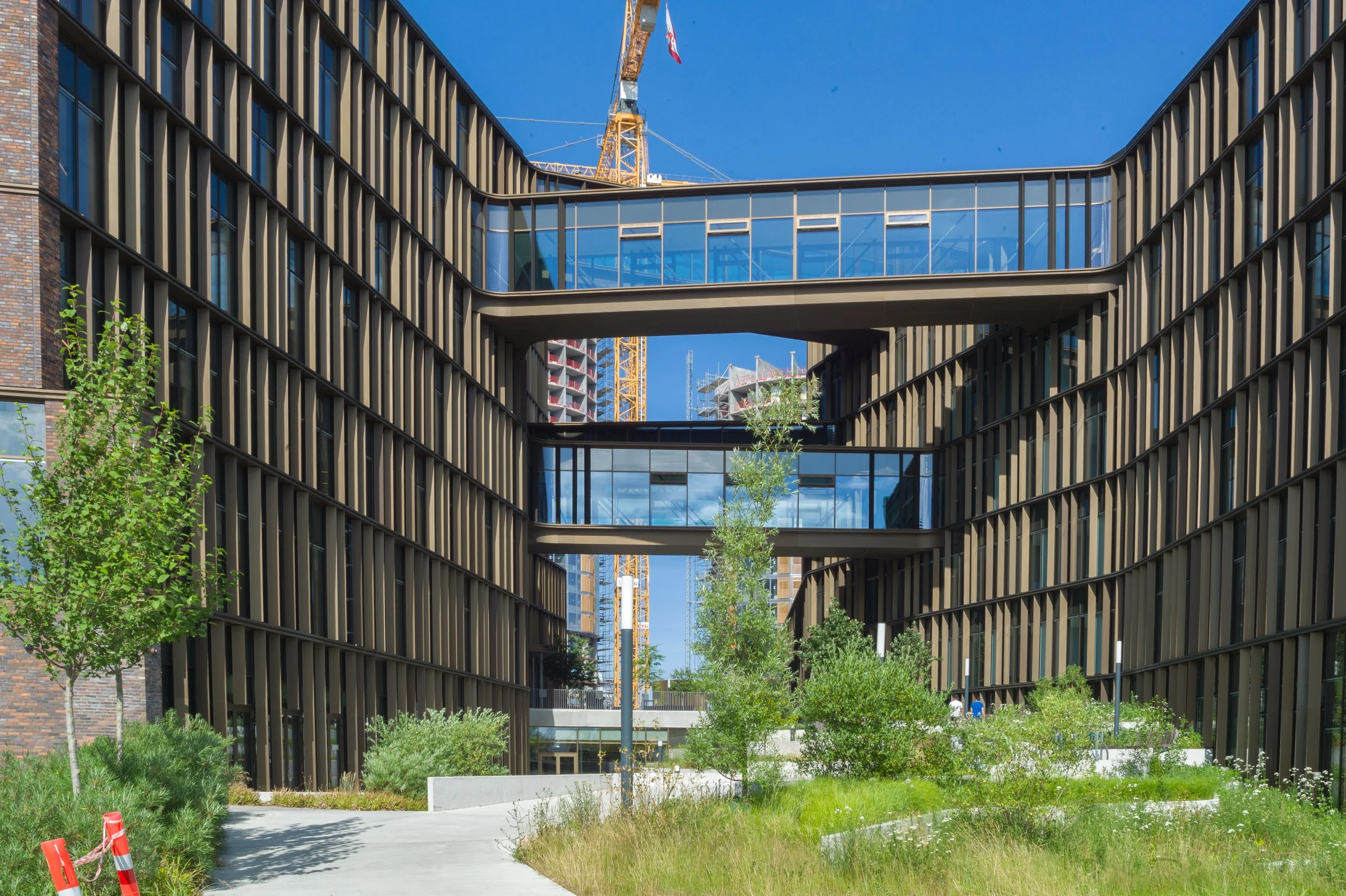

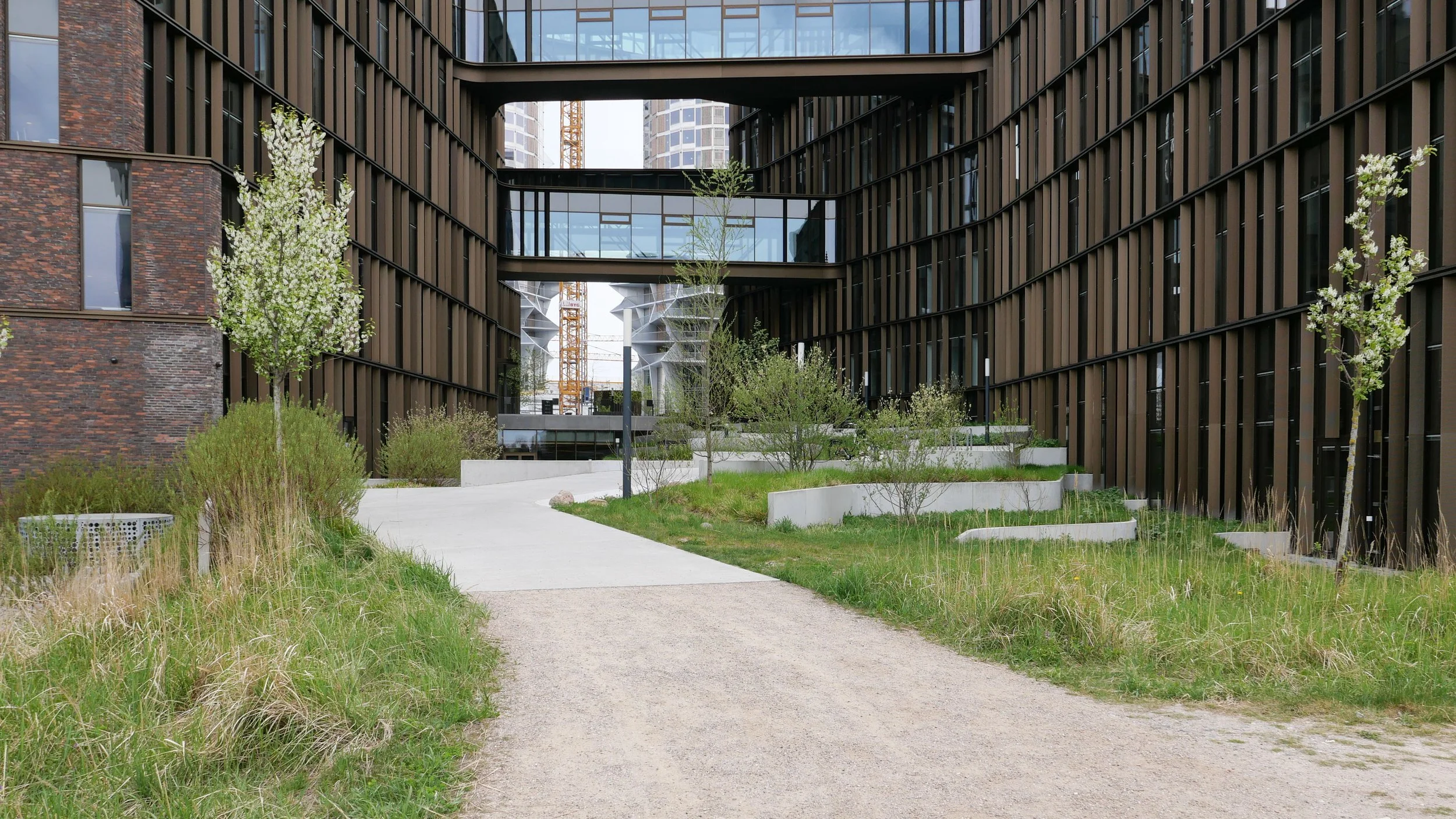

The landscape of Det Grønne Strøg - the green line - runs through the centre of the building and reads as a steeply sloping green canyon that is quite enclosed with bridges across at upper levels

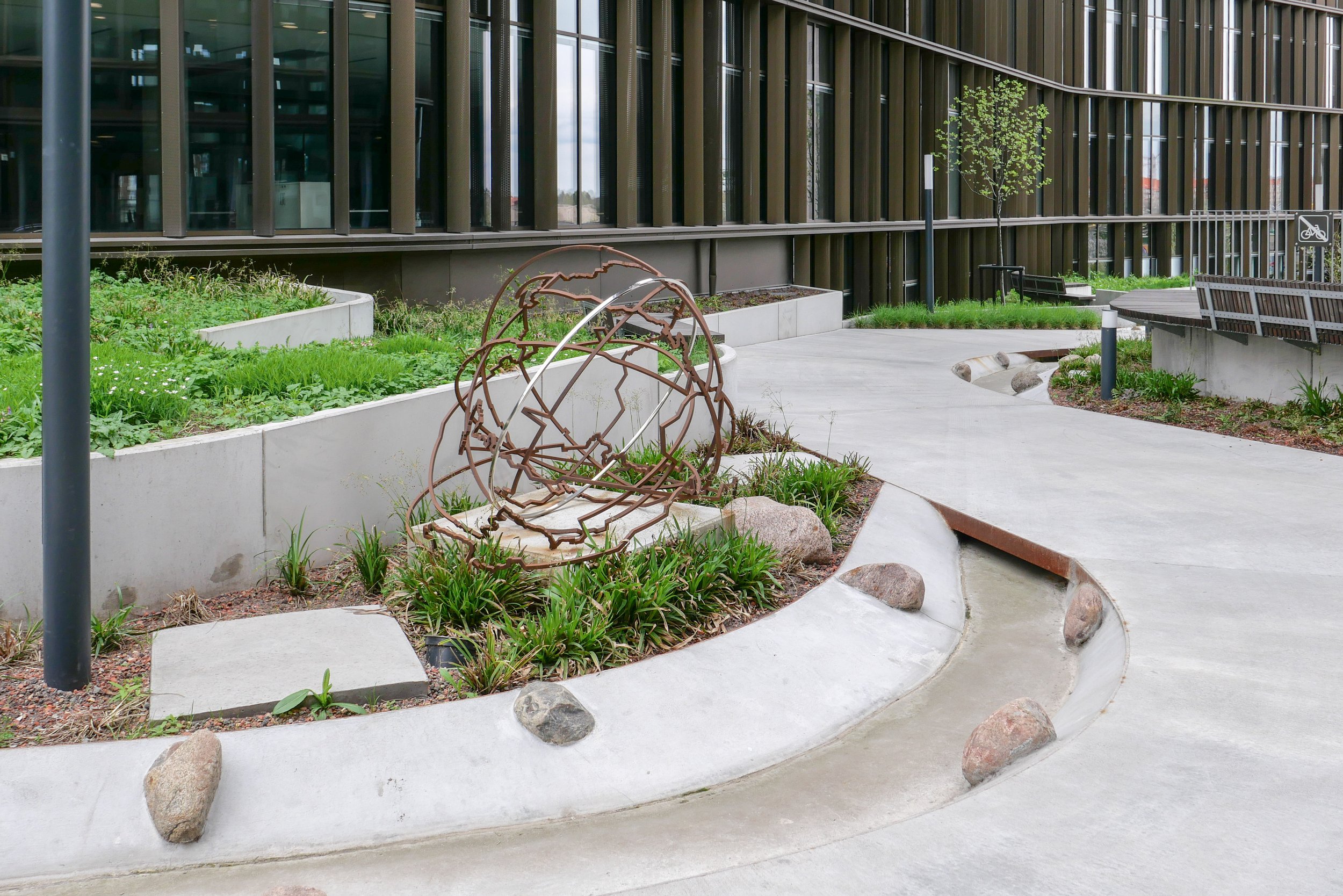

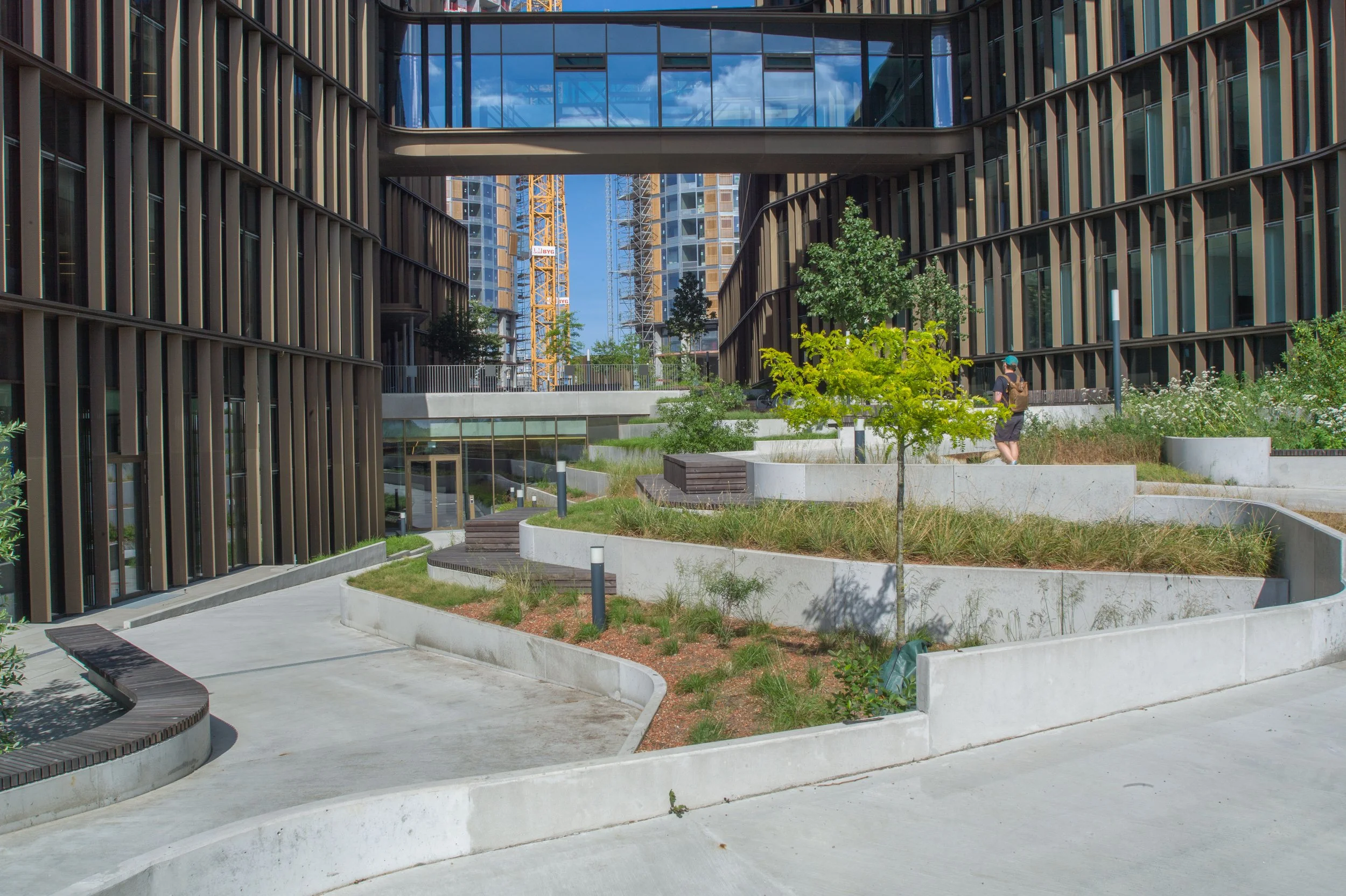

Workers and visitors coming from either Dybbølsbro and the suburban train station or by bike over the cycle bridge, coming from Islands Brygge, arrive at the top of the green street on the north side and there is a main entrance there but with views down the green landscape that drops down a series of zig-zag concrete paths with a concrete rill that will take rain water down alongside the path.

Through the length of the green line, a key part of the design is that all rain water is captured and reused for the plants and trees.

New planting is attractive but, until it becomes more established, it is difficult to judge but there is a good view down from the top to the new railway control tower beyond.

Arkitema - Nexus

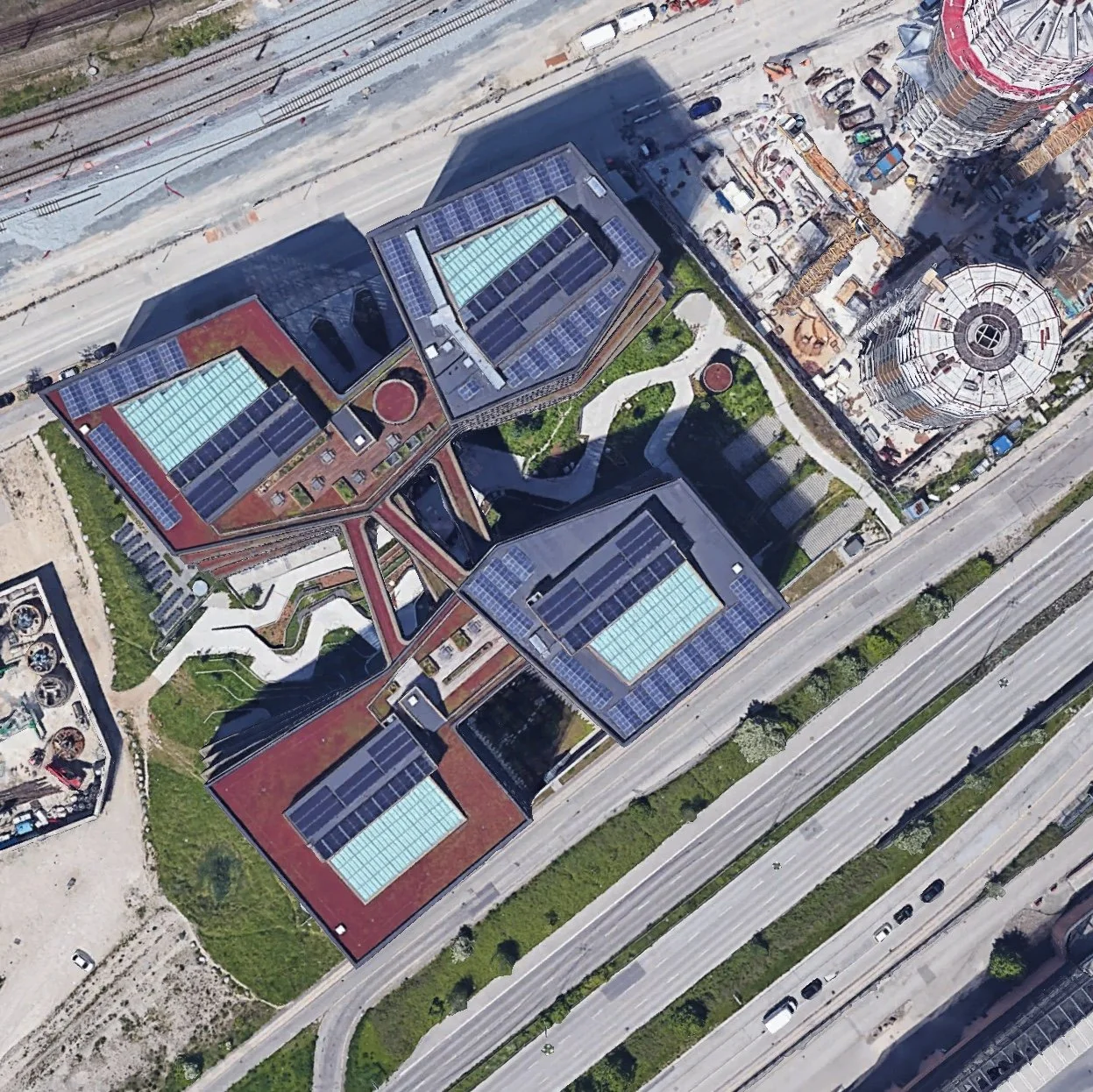

from the air, the grouping of four blocks forms a clover-leaf arrangement with few right angles
the railway is to the North and Kalvebod Brygge and its slip roads to the south
the Cactus Towers are to the north-east and, when completed, Det Grønne Strøg or the Green Line will cross from the roof of the IKEA store - now under construction - and drop down a steep slope before continuing on through the Nexus building to the landscape around the new railway control tower

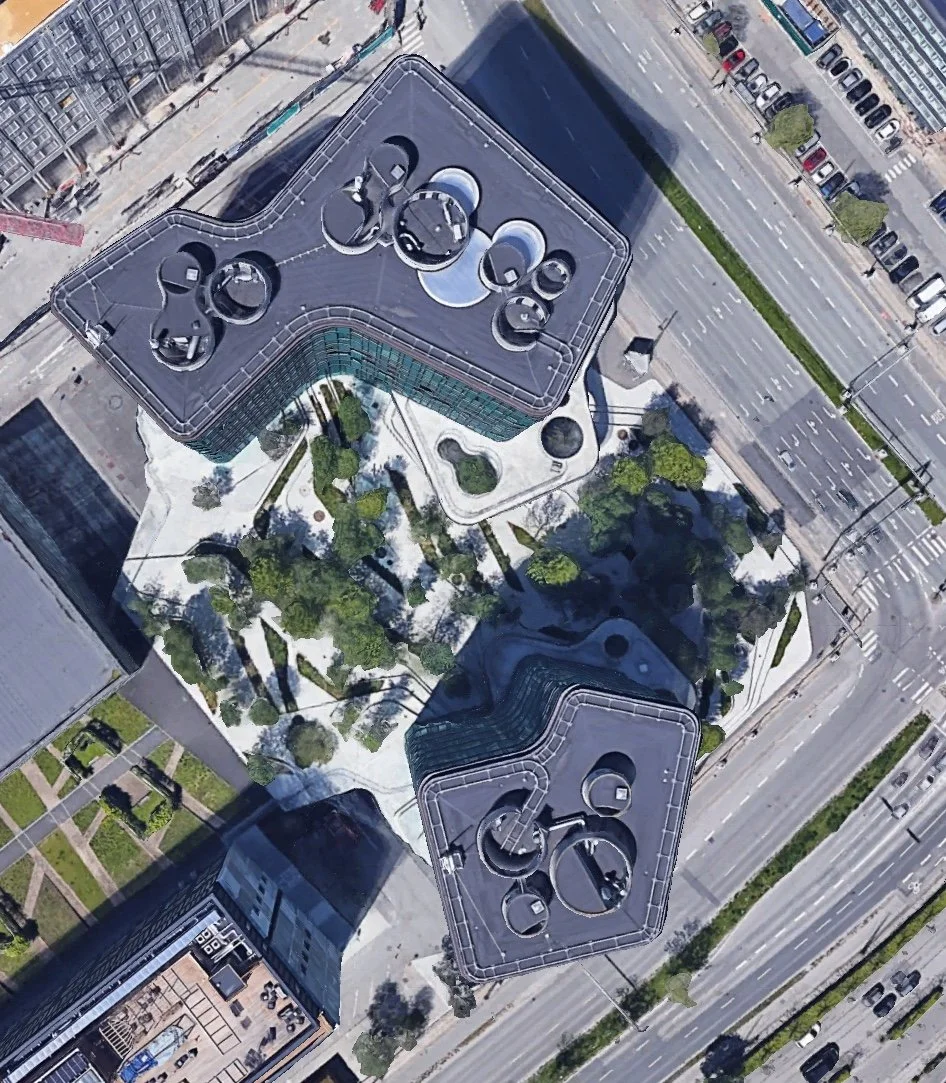

the SEB towers at the corner of Bernstorffsgade and Kalvebod Brygge were finished in 2011 and this was the first part of the green line completed … it’s where the landscape rises up a steep slope from pavement level to continue across the roof of the archive building
it is obvious that over a decade later, economic imperatives now determine the amount of land that is built on and the area of public space at Nexus is as tight as possible
in the initial Lokalplan of 2006, the Nexus site was set aside to be a park free of buildings but now open land in the city is seen as too valuable to be left fallow

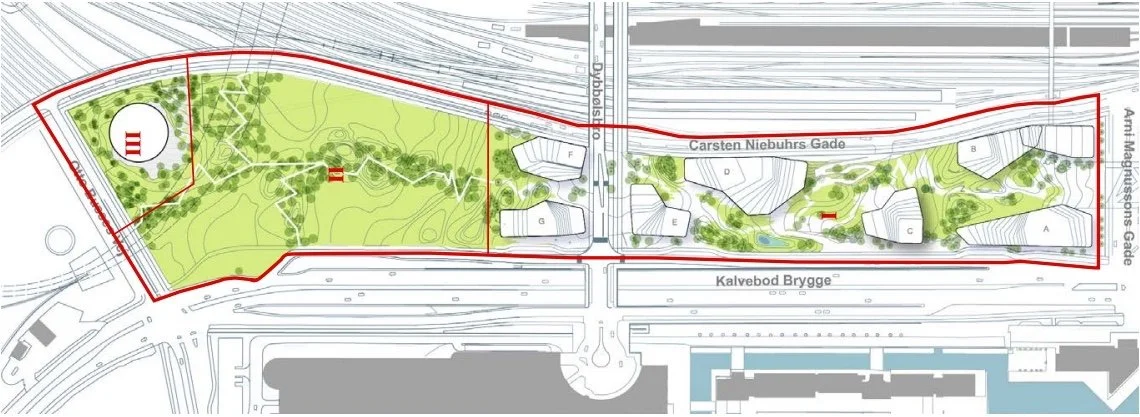

the original scheme for the south or outer end of Det Grønne Strøg - the Green Line - was set out in a Lokalplan
then, what is now the Nexus site, immediately before the circular railway control tower, was to be left open as a park without any buildings
note that all the buildings were to have a dynamic and twisting outline with all upper floors setting back and the angle changing to reduce the oppressive outline of a tall block with sheer sides and to reduce shadow and reduce the impression of height from below
the two blocks set on either side of the green line on the left or south side of Dybbølsbro - labelled F and G - is the site of the two Cactus Towers by BIG that are now close to completion
